l Product Name Economic Waterproof IR Camera –IR10M
l Camera CCD Sony CCD or Sharp CCD
l Resolution 600TVL High Resolution (420TVL or 480TVL optional)
l Infrared LED 12PCS/φ5
l IR View Distance 10Meters
l Mini. Illumination 0Lux (LED On)
l Lens 3.6MM
l Bracket All-Oriented Bracket
l Waterproof Rate IP66
l Optional Color Silver or Black
|
Model Number |
C101S-4113 |
C101S-3213 |
C101S-4313 |
|
Image Device |
CMOS Sensor |
1/3″Sony CCD |
1/4″Sharp CCD |
|
Horizontal Resolution |
420TVL |
420TVL |
420TVL |
|
Scanning System |
2:1 Interlace |
||
|
Minimum Illumination |
0 Lux (IR on) |
||
|
Lens |
3.6mm |
||
|
Regular View Angle |
95° |
||
|
Min. Object Distance |
0.4M |
||
|
Infrared Distance |
10 Meters |
||
|
IR LED Size/QTY |
12pcs (φ5) |
||
|
Wavelength |
850nm |
||
|
S/N Ratio |
>48dB |
||
|
Gamma Correction |
>0.45 |
||
|
Sync. System |
Internal |
||
|
Power Input /Current |
DC12V/300mA |
||
|
Adapter Requirement |
DC12V/1A (optional) |
||
|
Video Format |
PAL / NTSC |
||
|
Video Output |
CVBS: 1.0Vp-p/75Ω, BNC |
||
|
OSD Menu |
NO |
||
|
Day/Night |
Yes |
||
|
Electronic Shutter |
PAL: 1/60(Sec.)-1/100,000(Sec.); NTSC:1/60(sec.)-1/100,000(Sec.) |
||
|
Motion Detection |
No |
||
|
D-WDR |
No |
||
|
Privacy Making |
No |
||
|
Mirror Image |
H |
||
|
BLC |
Auto |
||
|
AGC |
Auto |
||
|
White Balance |
Auto |
||
|
D/N Mode |
Auto |
||
|
IR-CUT |
Yes |
||
|
Weatherproof Rate |
IP-66 |
||
|
Operating Temperature |
-10℃-50℃ |
||
|
Storage Temperature |
-20℃-60℃ |
||
|
Casing Color |
Silver or Black |
||
|
Bracket |
All-Oriented Bracket |
||
|

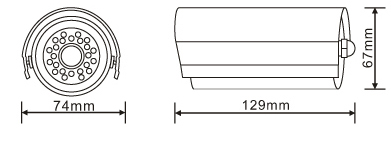

Dimension (L*W*H) |
|
||
|
Package (L*W*H) |
|
||
|
Weight (KG) |
|
||
