C102S
- Feature
- Specification

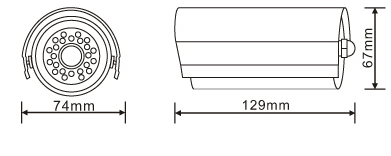

- Drawing
- Accessory
- Download
- Products Series
l Product Name Economic Waterproof IR Camera –IR15M
l Camera CCD Sony CCD or Sharp CCD
l Resolution 600TVL High Resolution (420TVL or 480TVL optional)
l Infrared LED 12PCS/φ5
l IR View Distance 15Meters
l Mini. Illumination 0Lux (LED On)
l Lens 3.6MM
l Bracket All-Oriented Bracket
l Waterproof Rate IP66
l Optional Color Silver or Black
Model Number C102S-4113 C102S-3213 C102S-4313 Image Device CMOS Sensor 1/3″Sony CCD 1/4″Sharp CCD Horizontal Resolution 420TVL 420TVL 420TVL Scanning System 2:1 Interlace Minimum Illumination 0 Lux (IR on) Lens 3.6mm Regular View Angle 95° Min. Object Distance 0.4M Infrared Distance 15 Meters IR LED Size/QTY 12pcs (φ5) Wavelength 850nm S/N Ratio >48dB Gamma Correction >0.45 Sync. System Internal Power Input /Current DC12V/300mA Adapter Requirement DC12V/1A (optional) Video Format PAL / NTSC Video Output CVBS: 1.0Vp-p/75Ω, BNC OSD Menu NO Day/Night Yes Electronic Shutter PAL: 1/60(Sec.)-1/100,000(Sec.); NTSC:1/60(sec.)-1/100,000(Sec.) Motion Detection No D-WDR No Privacy Making No Mirror Image H BLC Auto AGC Auto White Balance Auto D/N Mode Auto IR-CUT Yes Weatherproof Rate IP-66 Operating Temperature -10℃-50℃ Storage Temperature -20℃-60℃ Casing Color Silver or Black Bracket All-Oriented Bracket Dimension (L*W*H) Package (L*W*H) Weight (KG)
.jpg)
| No. | File Name | Download Format |
| 1 | C102S |  |
