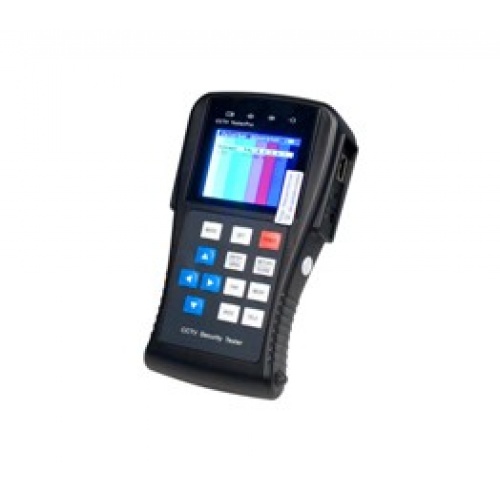

l  Product Name: CCTV TESTER

l  2.8' TFT-LCD Monitor, 960(H) x 240(V) Resolution

l  Power Output 1CH -12V/1A

l  1CH Audio Input for testing audio status

l  Adjustable brightness, contrast, color of LCD

l  Video Level testing, video signals measured in IRE or mV

l  Automatically identify and adapt the video mode of NTSC and PAL

l  Color Bar Video Signal Generator - transmit/receive colorful images

l  Support more than twenty kinds of PTZ controller protocols

l  Capture the PTZ protocol to assist the setting personnel to find out the control protocol and therefore easily target the problematic equipment

l  Support RS232 and RS485 interface, the rate 150-19200bps

l  Powerful in testing LAN cable, measuring the connecting status and displaying the sequence of connection

l  PTZ Controller - control the status of pan, tilt and zoom in/out the camera, adjust the aperture, focus and setting parameters, run and call the preset

l  PTZ Address Scanning, search up the ID of PTZ Camera

l  Lithium Ion Polymer Battery (3.7V DC2800mAh) can work more than 15 hours

l  Easy to use and need no special training

APPLICATION:

l  It can be used for displaying video, testing video level, controlling PTZ, scanning PTZ address, generating images, capturing data of RS485 and testing LAN cable etc

l  On-Site installation and maintenance of video monitoring system

l  Dome camera and All in one camera testing

l  The CCTV transmitting channel testing

l  PTZ camera tester and controller

l  Audio Testing Advice

l  UTP Cable tester
